ATB-4SAFETY test SINGLE-PHASE
ALL IN ONE – ELECTRICAL SAFETY AND FUNCTIONAL TEST AT THE END OF PRODUCTION LINE
- HIGH VOLTAGE AND HIGHT CURRENT SOURCES
- INDEPENDENT FROM THE POWER LINE AND DEVICES UNDER TEST
MAIN FEATURES
ELECTRICAL SAFETY
- Earth continuity test:
from 10 A to 25 A / (0 ÷ 500) mΩ - Insulation test:
500 V – 1kV , (0.5 ÷ 200) MΩ - Dielectric strength test:
(300 ÷ 5500) V - Leakage current test in ground fault condition, filter circuit as applied standard, measurements in TRMS (0.05 ÷5) mA or (0.1 ÷ 10) mA
- ISOLATED power supply voltage
- High voltage sources compliant to EN50191
FUNCTIONAL TESTS
Single-phase and three-phase devices.
- Current measurements:
from 1mA to 32 A; - Power measurements in VA:
from 1 VA to 22 kVA; - Power measurements in Watt:
from 1 W to 22 kW; - Cos φmeasurements;
- Frequency measurements;
- Crest Factor Measurements;
- Energy Measurements (kW / h):
Active – Reactive – Apparent
AND MORE
- Luminaires and LED:
Standard IEC 60598-1 ANNEX “Q”; - Household and similar appliances:
IEC 60335-1, IEC 50106, IEC/EN 60335-2-xx; - Information technology equipment:
IEC/EN 60950-1, EN 50116; - Audio/video information and communication technology:
IEC/EN 62638; - Electrical equipment for measurement, control and laboratory use:
IEC/EN 61010-1; - Electro-medical devices:
IEC 60601-1 (contact ABAG for details).
PLUG AND WORK
The ATB-4SAFETY is a Plug and Work instrument that allows the immediate installation and programming, the operator can work directly with the large resistive touch screen display 12 inch also be used with gloves or with barcode reader or with traditional push button controls.
MAXIMUM FLEXIBILITY
The system is adaptable to the specific needs of the device under test with the ability to program up to fifteen functional measures in automatic sequence or by operator, with instructions and images.
CONCATENATION FUNCTION
The function allows the repetition of individual measurements or measurement sequences, in automatic mode or by operator with instructions and images. Independent test parameters, all measurements are stored in a database.
Application example: products with multiple grounded metal parts independently on which to repeat the ground test measurement, ….conductive parts present on the product not grounded to guarantee isolated and in dielectric strength … etc. etc.
SELF TEST PROGRAM WITH DEDICATED EXTERNAL TEST LOAD
AUTOTEST function with resident software and “TEST LOAD” to verify efficiency traceability – The test load is associated with the testing system the parameters are reported in the user manual and are present in the Report Calibration of the instrument – The function complies with the daily test of the inspection surveillance documents.
The AUTOTEST is proposed at power on directly on the monitor with the image of how to connect the Test Load, alternatively, the function can be called up by the operator with a command on the screen. By confirming the execution of the self-test, the measurement system will automatically perform two complete measurement cycles where the test and acceptance parameters associated with the TEST LOAD expect to find “All PASS, All FAIL, otherwise the result of the function AUTOTEST will give FAIL with an acoustic and visual warning.
All test and acceptance parameters with the measurement results of the two test cycles will be stored in a database with date/time: mm: ss
Measurement functions subject of the AUTOTEST:
- Test of the protective conductor and FAIL indication;
- Insulation resistance test and FAIL indication;
- Dielectric strength test and FAIL indication;
- Leakage current test in a ground fault condition and FAIL indication.
THE AUTOTEST DOES NOT REPLACE THE CALIBRATION
ABAG is ISO 9001: 2015 certified also for calibration

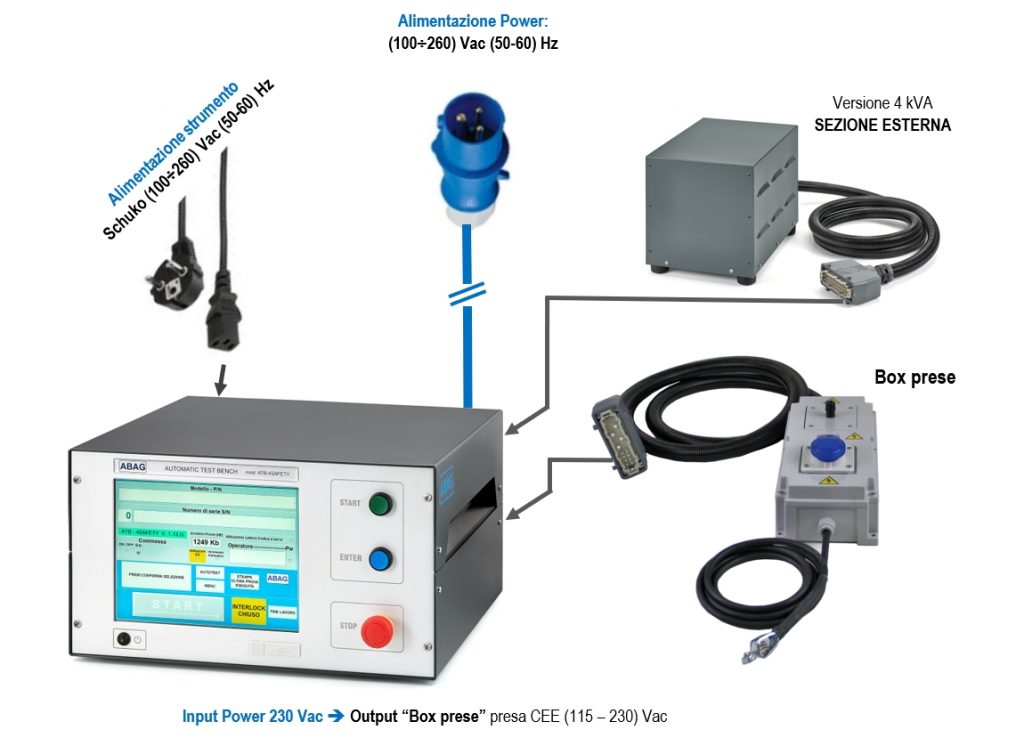

Connection box and Accessories
Product connection box
Accessori
ELECTRICAL SAFETY – PRODUCT STANDARDS
in update
The measuring ranges of ABAG test systems and their configuration possibilities make them ideal to perform the electrical safety measures provided in most of the product Standards mentioned by Directive 2006/95 / EC.
As an indication only below we report some of the most common standards, for details please contact us.
| CEI EN | CEI Classificazions | Description |
| CEI EN 60335-1 | 61-150 | Safety electrical appliances for household and similar purposes. Safety Part 1 : General requirements. |
| CEI EN 60598-1 | 34-21 | Luminaires. |
| CEI EN 60950-1 | 74-2 | Information technology devices. |
| CEI EN 62368-1 | 108-11 | Safety requirements for electrical measurement equipment,control and laboratory use. |
| CEI EN 61010-1 | 66-5 | Prescrizioni di sicurezza per apparecchi elettrici di misura, controllo e per utilizzo in laboratorio. |
| CEI EN 60974-1 | 26-13 | Equipment for arc welding. |
| CEI EN 60601-1 | 62-5 | Basic safety general requirements and essential requirements. |
| CEI EN 50106 | 61-68 | Electrical safety appliances for household and similar use. Particular routine Tests rules for the devices that are part of EN 60335-1 application. |
| CEI EN 50116
|
74-5
|
Apparecchiature per la tecnologia dell’inforazione. Prove di serie per la verifica della sicurezza elettrica durante la fabbricazione. |
| CEI EN 62911 | 108-12 | Apparecchiature audio, video e per la tecnologia dell’informazione. Prove individuali per la verifica della sicurezza eletrica durante la fabbricazione. |
| CEI CLC/ TR50417 |
Electrical appliances safety for household and similar. Interpretations related to European Standards that are part of the standard application of the series EN 60335 |
|
| CEI EN 60335-2-10 | 61-188 | SSafety of electrical appliances for household and similar. Part 2: Particular requirements for treatment floors appliances, for rub-floors and wet floors |
| CEI EN 60335-2-102 | 61-248 | Electrical appliances safety for household and similar. Part 2: Particular requirements for appliances with gas burners, fuel oil and solid fuel provided with electrical connections. |
| CEI EN 60335-2-103 | 61-242 | Safety of electrical appliances for household and similar. Part 2: Particular requirements for actuators gates, motorized doors windows and door. |
| CEI EN 60335-2-105 | 61-241 | Safety of electrical appliances for household and similar. Part 2: Particular requirements for multifunctional shower cabinets. |
| CEI EN 60335-2-106 | 61-249 | Safety of electrical appliances for household and similar. Particular requirements for heated carpets and for heating Panels installed under removable floor coverings, for space heating. |
| CEI EN 60335-2-108 | 61-253 | Safety of electrical appliances for household and similar. Part 2: Apparatus electrolysers. |
